STM8S Development Board ARM STM8S207 + STM8S103 Board with Color Touch Screen Audio Voice Gravity Sensor Interface

by - March 26, 2020

STM8S Development Board ARM STM8S207 + STM8S103 Board with Color Touch Screen Audio Voice Gravity Sensor Interface
STM8S Development Board ARM STM8S207 + STM8S103 Board with Color Touch Screen Audio Voice Gravity Sensor InterfaceSTM8S Development Board ARM STM8S207 + STM8S103 Board with Color Touch Screen Audio Voice Gravity Sensor InterfaceSTM8S Development Board ARM STM8S207 + STM8S103 Board with Color Touch Screen Audio Voice Gravity Sensor Interface


Get STM8S Development Board ARM STM8S207 + STM8S103 Board with Color Touch Screen Audio Voice Gravity Sensor Interface


Features:

- Onboard two STM8S MCU, two single-chip MCU can communicate through the serial port. Users can comprehensive learning STM8S.
- STM8S207R8 MCU, with 52 GPIO, 64K FLASH, 6K SRAM.
- STM8S103F3 MCU, with 16 GPIO, 8K FLASH, 1K SRAM.
- Onboard 24M external crystal, support STM8S run at the fastest speed.
- Standard microUSB interface powered, horizontal SWIM interface, neat simple connection.
- Onboard a variety of peripheral interfaces, can access a variety of expansion modules.
- Onboard touch keys, buzzer, LED, photoresistance, RTC, FLASH etc.
- Onboard power indicator, RESET key.
- Download the test program at the factory.
- SWIM Interface:The SWIM interface is the interface for the STM8S download program and the debugger, connect STM8S to the computer via STLink.

Application Examples:

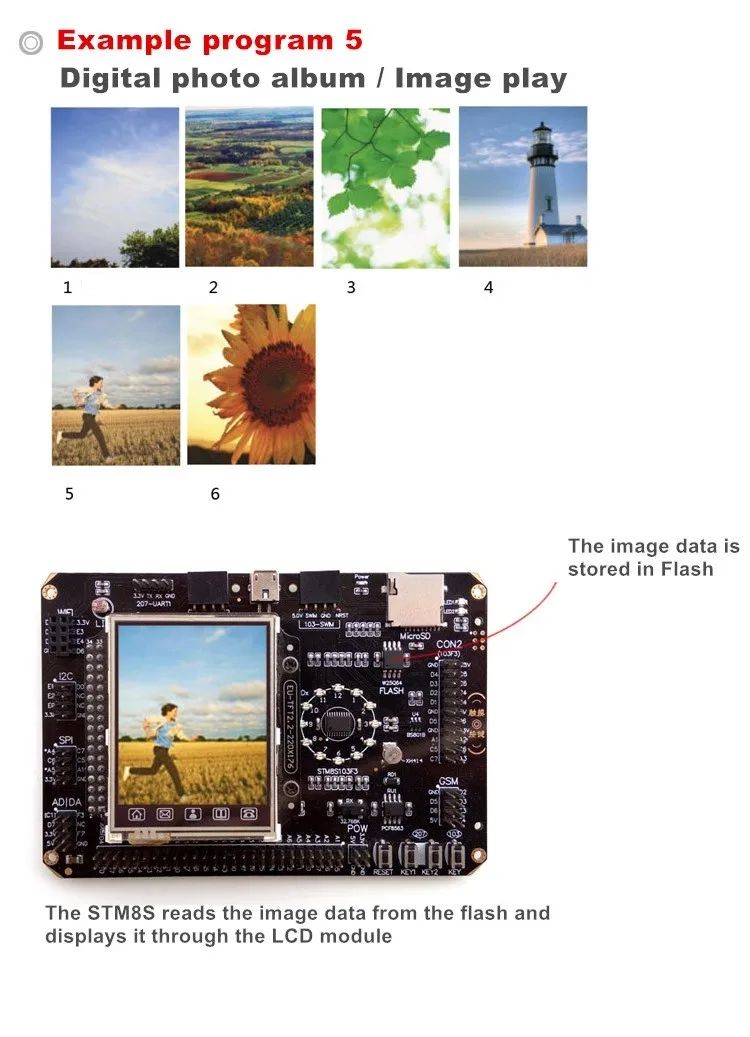

5

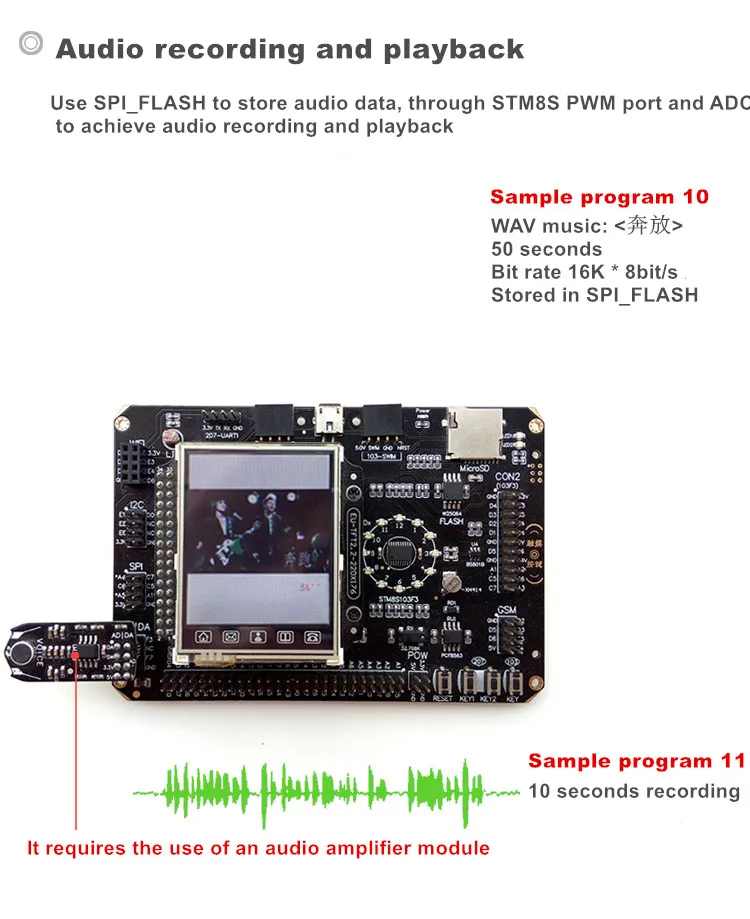

6



Package Included:

1 x STM8S Development Board ARM STM8S207 + STM8S103 Board








STM8S Development Board ARM STM8S207 + STM8S103 Board with Color Touch Screen Audio Voice Gravity Sensor InterfaceSee detail
